SAPPHIRE PULSE Radeon RX 9060 XT 8GB

Specifications Benchmarks Synonyms

Specifications

Technical data

GPU

Based on
AMD Radeon RX 9060 XT
Board Manufacturer
Sapphire
Board Model
SAPPHIRE PULSE Radeon RX 9060 XT 8GB
Board SKU
11350-05-20
Compute Units
32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
GPU Chip
AMD Radeon RX 9060 XT
Stream Processors
2048

Memory

Memory Bus
128 bit
Memory Data Rate
20 Gbps Effective
Memory Size
8 GB
Memory Type
GDDR6

Clock Speeds

Boost Clock
Up to 3130 MHz
Game Clock
Up to 2530 MHz

Thermal Design

System Power Supply
450 W (PSU recommendation)
Total Board Power
150W Typical Board Power

Connectivity

DisplayPort Ports
1 × DisplayPort 2.1a
HDMI Ports
2 × HDMI
PCIe Interface
PCIe 5.0 x16

Dimensions

Form Factor
2 slot, ATX Dimension: 200(L) X 109.25(W) X 40.6(H)mm

Additional data

Official source
https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-9060-xt-8g-m-gddr6
Verified on
2026-09-30

Positions in all rankings

Common positions SAPPHIRE PULSE Radeon RX 9060 XT 8GB GPU in popular benchmarks, for comparison with other models.

No data

Manufacturer versions

Board specifications and benchmark results are specific to each version.

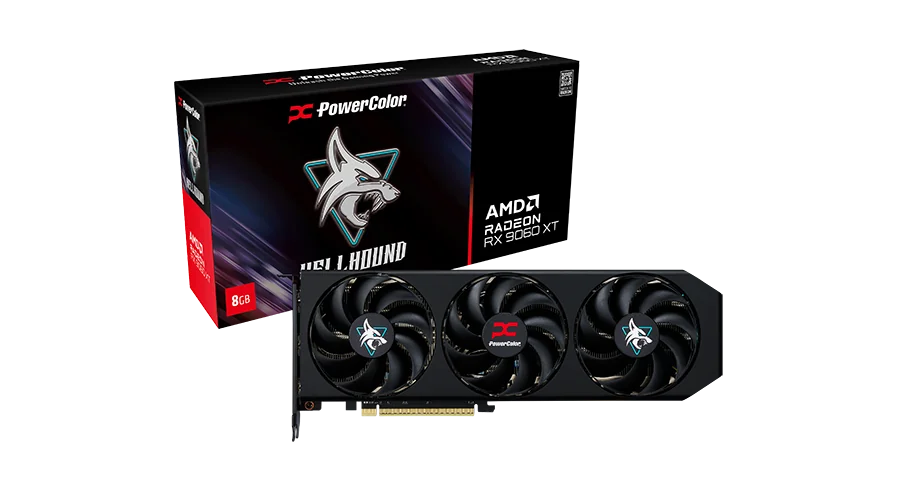

PowerColor Hellhound AMD Radeon RX 9060 XT 8GB GDDR6

PowerColor · 8 GB

PowerColor Reaper White AMD Radeon RX 9060 XT 8GB GDDR6

PowerColor · 8 GB

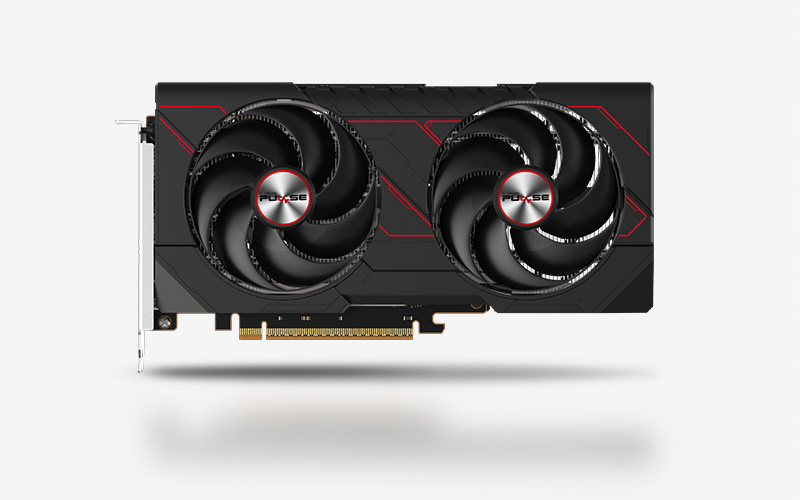

SAPPHIRE PULSE Radeon RX 9060 XT OC 8GB

Sapphire · 8 GB

All models based on this GPU

Benchmarks

Performance tests GPU

No benchmark results are available yet. This model is listed with specifications only.

These are saved results from the earlier catalog. Measurement dates and test configurations were not recorded. Models with no comparable results are omitted.

Recent models: test results with identified primary sources — Game frame rates

Comparable benchmark results are required to suggest performance alternatives.

Base Clock is the base GPU frequency stated by the manufacturer for this model.

Boost Clock describes automatic frequency increases. Actual clock speed varies with workload, temperature and power limits; it is not a guarantee of manual overclocking.
