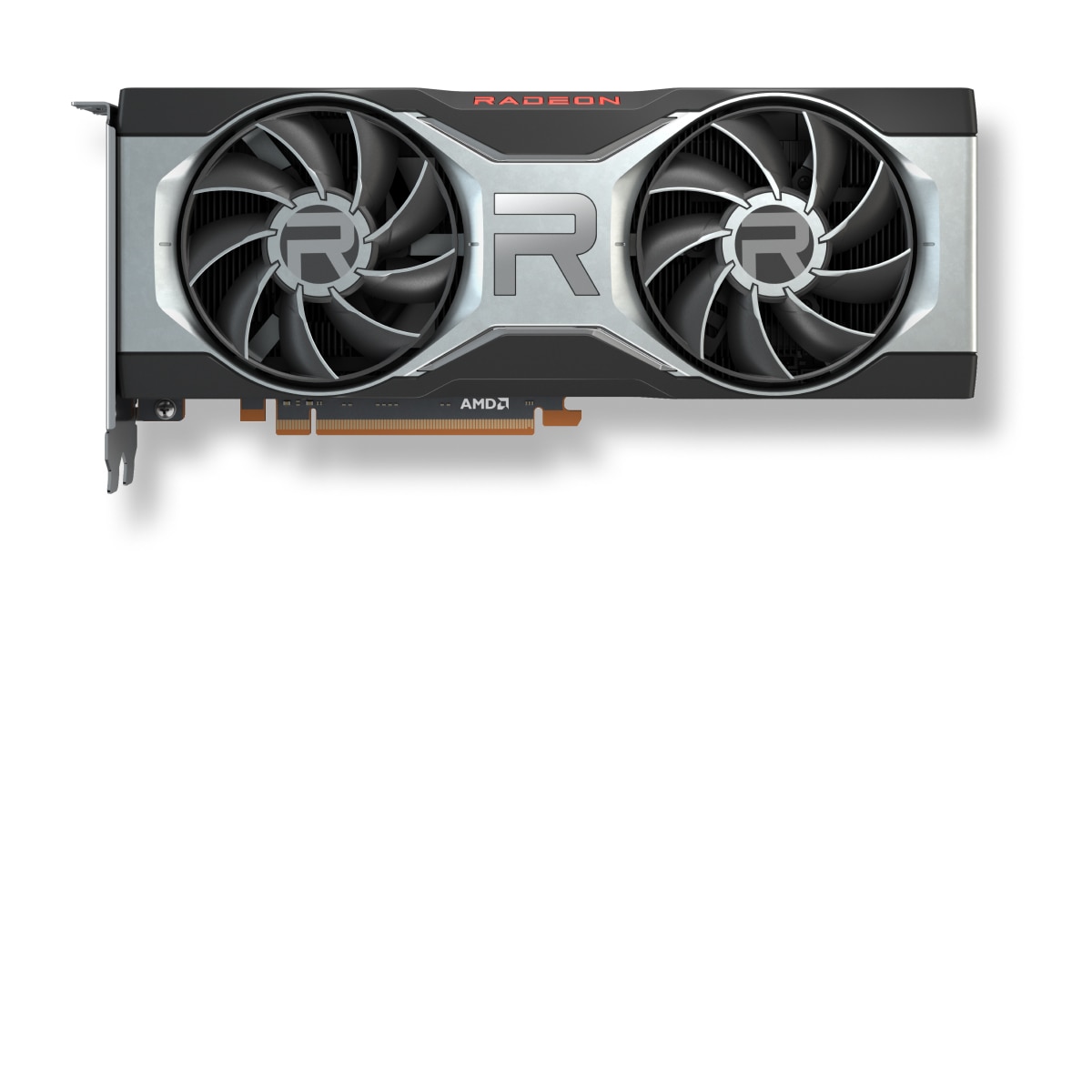

Palit GeForce RTX 4060 Infinity 2 OC 8GB vs AMD Radeon RX 6700. Specifications, performance, tests

Comparison of basic technical data of graphics cards Palit GeForce RTX 4060 Infinity 2 OC 8GB and AMD Radeon RX 6700, chip, information processing units.

• Based on
  NVIDIA GeForce RTX 4060 AMD Radeon RX 6700
• Board Manufacturer
  Palit -
• Board Model
  Palit GeForce RTX 4060 Infinity 2 OC 8GB -
• Board SKU
  NE64060S19P1-1070L -
• CUDA Cores
  3072 -
• Compute Units
  - 36
• Execution Units
  - 36
• Ray Accelerators
  - 36
• Render Output Units
  - 64
• Shader
  - 2304

Video memory capacity, type, bus width and bandwidth describe different properties. These values alone do not determine graphics performance.

• Memory Bandwidth
  272 GB/s 320 GB/s
• Memory Bus
  128 bit 160 bit
• Memory Data Rate
  17 Gbps 16 / 14 Gbps
• Memory Size
  8 GB 10 GB
• Memory Type
  GDDR6 GDDR6
• Infinity Cache
  - 80 MB

Published GPU clock frequencies describe different operating modes. Clock speed alone does not determine graphics performance.

• Boost Clock
  2565 MHz 2450 MHz
• Graphics Clock
  1830 MHz -
• Base Clock
  - 1941 MHz
• Game Clock
  - 2174 MHz

Graphics card power limits and recommended system power supply describe different specifications.

• System Power Supply
  600 W (PSU recommendation) 600 W (System power requirement)
• Total Board Power
  115 W -
• Typical Board Power
  - 175 W

Connectivity and connections.

• DisplayPort Version
  DP1.4a x 3 1.4a
• HDMI Version
  HDMI 2.1a 4K120Hz/8K60Hz VRR as specified in HDMI 2.1
• PCIe Interface
  PCI-E 4.0 -
• Power Connectors
  8-pin x 1 1x8-Pin

The difference in size, weight and slot of the compared devices

• Dimensions
  249.9 x 123.5 x 40.2 mm -
• Slot Size
  2 Slot -

Comparison of interfaces and release dates for GPU AMD Radeon RX 6700 and Palit GeForce RTX 4060 Infinity 2 OC 8GB.

• Release date
  - 2021-06-09
