AMD Radeon RX 9070 XT vs Intel Arc B570 — Specifications, performance, tests

Differences Specifications Benchmarks Testimonials

Differences

Reasons to consider

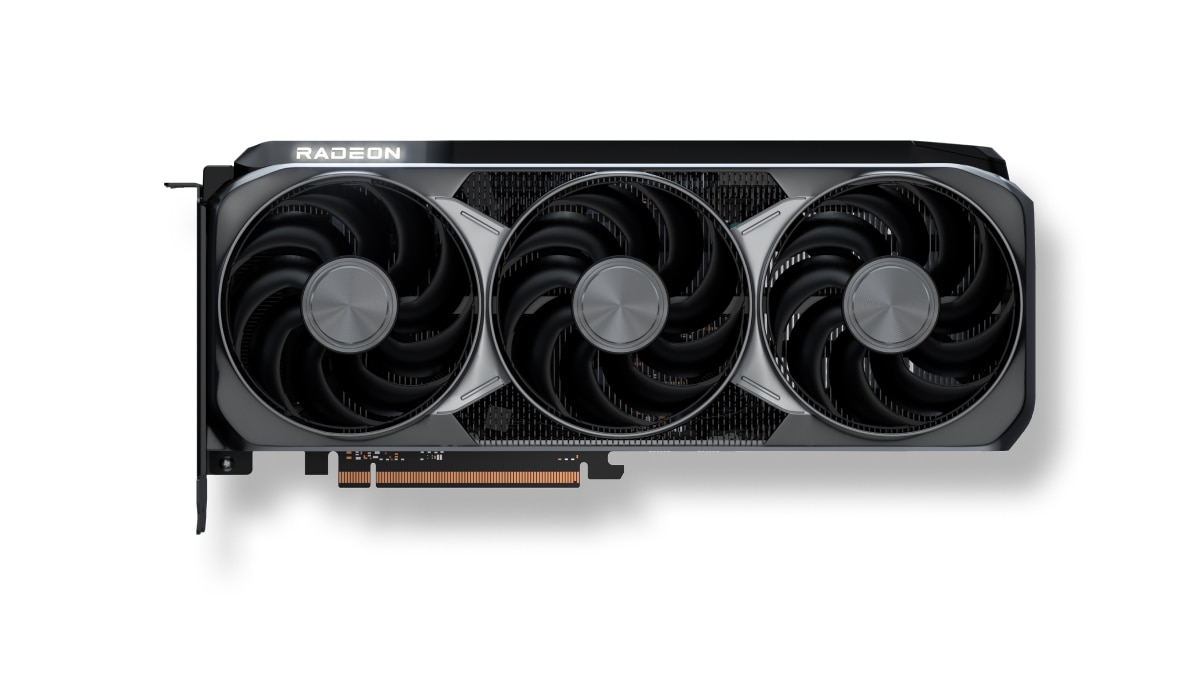

AMD Radeon RX 9070 XT

Report a bug

More memory

60% more memory

16 GB 10 GB

Reasons to consider
Intel Arc B570

Report a bug

Specifications

Technical data

AMD Radeon RX 9070 XT

Intel Arc B570

General info

Comparison of basic technical data of graphics cards AMD Radeon RX 9070 XT and Intel Arc B570, chip, information processing units.

AI Accelerators

128 -
Architecture

RDNA 4 Xe2
Based on

AMD Radeon RX 9070 XT Intel Arc B570
Compute Units

64 -
Execution Units

64 -
Ray Accelerators

64 -
Render Output Units

128 -
Shader

4096 -
GPU Chip

- Battlemage
Ray Tracing Units

- 18
Xe Cores

- 18
Xe Vector Engines

- 144
XMX Engines

- 144

Memory settings

Video memory capacity, type, bus width and bandwidth describe different properties. These values alone do not determine graphics performance.

Infinity Cache

64 MB -
Memory Bandwidth

640 GB/s 380 GB/s
Memory Bus

256 bit 160 bit
Memory Data Rate

20 Gbps 19 Gbps
Memory Size

16 GB 10 GB
Memory Type

GDDR6 GDDR6

Clock frequency

Published GPU clock frequencies describe different operating modes. Clock speed alone does not determine graphics performance.

Boost Clock

2970 MHz -
Game Clock

2400 MHz -
Graphics Clock

- 2500 MHz

Thermal Management

Graphics card power limits and recommended system power supply describe different specifications.

System Power Supply

750 W (System power requirement) -
TDP

304 W 150 W
Typical Board Power

304 W -

Interfaces

Connectivity and connections.

DisplayPort Version

2.1a -
HDMI Version

2.1b -
PCIe Interface

PCIe 5.0 x16 4.0 x8
Power Connectors

2x8-Pin -

Supported Video Codecs

Built-in support for video and image compression standards.

AV1

Decode / Encode Decode / Encode

More information

Comparison of interfaces and release dates for GPU Intel Arc B570 and AMD Radeon RX 9070 XT.

Availability window (manufacturer)

2025-03-06 -
Date evidence scope

Manufacturer-announced OEM/board availability window; exact first shipment is not established by this source. -
Release date

2025-03-06 -
Verification scope

Explicit manufacturer fields refreshed; other original historical fields retained, not all reverified. Partial composite conflicts are preserved. -
Process Technology

- TSMC N5

Theoretical Performance

FP32 (theoretical)

48.7 TFLOPS -

Benchmarks

Performance tests GPUs

Individual model tests

These results have no shared test of both models with the same version and settings. They are shown separately without a percentage difference.

AMD Radeon RX 9070 XT

Blender 4.4.0 / HIP / Windows 3103.766423 samples/min
Blender 4.5.0 / HIP / Linux 3267.377905 samples/min
Blender 4.5.0 / HIP / Windows 3281.798517 samples/min
Blender 5.0.0 / HIP / Linux 2932.879664 samples/min
Blender 5.0.0 / HIP / Windows 2914.872034 samples/min
Blender 5.1.0 / HIP / Linux 3374.085041 samples/min
Blender 5.1.0 / HIP / Windows 3665.074666 samples/min
Blender 5.1.1 / HIP / Linux 3313.31384 samples/min

More results: 27

Blender 5.1.1 / HIP / Windows 3610.153443 samples/min
Blender 5.2.0 / HIP / Linux 3274.405363 samples/min
Blender 5.2.0 / HIP / Windows 3397.470743 samples/min
ComputerBase GPU suite 2026 / Alan Wake 2 / 2560x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT off 83.5 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Alan Wake 2 / 2560x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT on 56.7 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Alan Wake 2 / 3440x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT off 69.7 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Alan Wake 2 / 3440x1440 / Maximale Grafikdetails / DLSS/FSR Quality / RT on 46.9 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Alan Wake 2 / 3840x2160 / Maximale Grafikdetails / DLSS/FSR Quality / RT off 53 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Alan Wake 2 / 3840x2160 / Maximale Grafikdetails / DLSS/FSR Quality / RT on 33.9 FPS Rendering: FSR 2 Quality
ComputerBase GPU suite 2026 / Anno 117 / 2560x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off 93 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Anno 117 / 2560x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on 72.4 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Anno 117 / 3440x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off 81.5 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Anno 117 / 3440x1440 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on 62.6 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Anno 117 / 3840x2160 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT off 60.7 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Anno 117 / 3840x2160 / Ultra-Hoch-Preset / DLSS/FSR Quality / RT on 45 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / ARC Raiders / 2560x1440 / Episch-Preset / DLSS/FSR Native / RT off 107.8 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / ARC Raiders / 2560x1440 / Episch-Preset / DLSS/FSR Native / RT on 88 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / ARC Raiders / 3440x1440 / Episch-Preset / DLSS/FSR Native / RT off 87.9 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / ARC Raiders / 3440x1440 / Episch-Preset / DLSS/FSR Native / RT on 73.3 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / ARC Raiders / 3840x2160 / Episch-Preset / DLSS/FSR Native / RT off 59.9 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / ARC Raiders / 3840x2160 / Episch-Preset / DLSS/FSR Native / RT on 50.8 FPS Rendering: FSR 4.1 Native
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 2560x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off 73.3 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 2560x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on 62.8 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3440x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off 67.4 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3440x1440 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on 54.9 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3840x2160 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT off 59.5 FPS Rendering: FSR 4.1 Quality
ComputerBase GPU suite 2026 / Assassin's Creed Shadows / 3840x2160 / Extrem-Hoch-Preset / DLSS/FSR Quality / RT on 46.6 FPS Rendering: FSR 4.1 Quality

Intel Arc B570

Results with primary test sources

Published measurements are separate from the archived index. Incomplete conditions and unknown run counts do not support ranking positions or calculated performance differences.

Model	Test	Result	Reported conditions
AMD Radeon RX 9070 XT	The Witcher 3: Wild Hunt - Remastered / 1440p / Ultra / Native	118 FPS	Test CPU: AMD Ryzen 7 9800X3D System RAM: 32 GB DDR5-6000 Driver: AMD pre-release 26.20.15.02 Specific partner board and exact game build unreported.
AMD Radeon RX 9070 XT	The Witcher 3: Wild Hunt - Remastered / 4K / Ultra / Native	57 FPS	Test CPU: AMD Ryzen 7 9800X3D System RAM: 32 GB DDR5-6000 Driver: AMD pre-release 26.20.15.02 Specific partner board and exact game build unreported.

Individual system tests

Results were obtained on the reported systems. Test versions and settings remain separate; incomplete conditions do not support calculated model performance differences.

Cinebench 2026 / GPU

Model	Result	Reported conditions
AMD Radeon RX 9070 XT	55898 points	System: 265KF, RX 9070 XT, 48 GB Graphics: 265KF, RX 9070 XT, 48 GB Source minimum runtime: 0 minutes. Exact test build and complete conditions are unreported; no ranking position.
